You can tell right away that something is wrong when a garage door spring breaks, because the moment it happens, the garage often fills with a sharp, loud bang that can sound like a gunshot. After that snap, the door may refuse to open or close, or it may jerk unevenly as it tries to move, which makes it clear that this is not a minor hiccup but a system-level failure. The spring is a core part of the lifting mechanism, so once it gives out, the door loses the support that normally counterbalances its weight.
The problem becomes serious fast, since a garage door can weigh hundreds of pounds and feels almost impossible to handle without that spring doing its job. With the counterweight gone, the door turns into a heavy, unstable load that can strain the opener or stop it from working at all, which is why residential garage door repair often becomes necessary right after a spring failure. Understanding what happens in these moments matters, so you can respond to the situation correctly and protect everyone around the door.
Understanding the Garage Door Spring and Its Job
A garage door spring powers the system by counterbalancing the door’s weight, which is why the door feels manageable instead of massively heavy. Because that tension is doing the real lifting, the door and the opener can raise and lower it smoothly without fighting hundreds of pounds of force, even though the spring is storing and releasing energy every time the door moves. This constant cycle puts the spring under high tension, which is exactly what it is built for while it is intact.

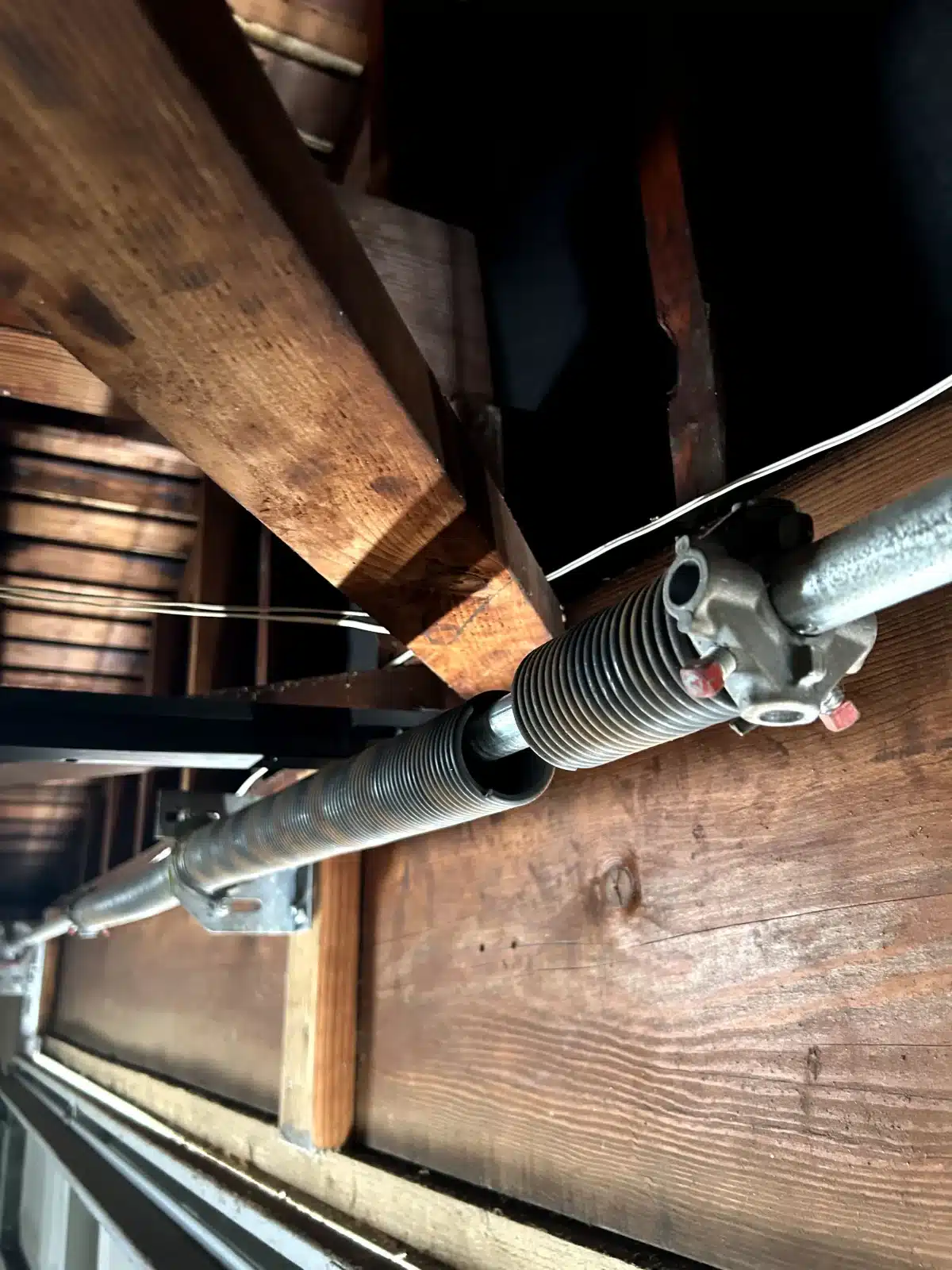

Most doors rely on one of two spring designs, torsion springs or extension springs, and both are meant to do the same essential work, even though they do it differently. Torsion springs sit above the door along a horizontal shaft and twist to provide lifting force, whereas extension springs run along each side and stretch and contract as the door travels on its tracks, which makes their placement and movement easy to spot. Because torsion setups distribute load more directly and handle higher tension more consistently, they are often used on heavier doors and many commercial systems, where a stronger lift balance is required.
For a deeper look at the warning signs before failure, read our blog “Is Your Garage Door Spring About to Snap? When Replacement Can’t Wait.”
Why a Garage Door Spring Is Essential for Safe Door Movement
A functioning garage door spring keeps the door balanced as it travels, allowing it to move steadily instead of dropping or surging. When the spring is doing its job, the door can pause halfway without drifting up or crashing down, since the load is being held in a controlled state rather than left to gravity. That balance protects people, vehicles, and the door itself, because a system that stays level is far less likely to slip or slam unexpectedly.

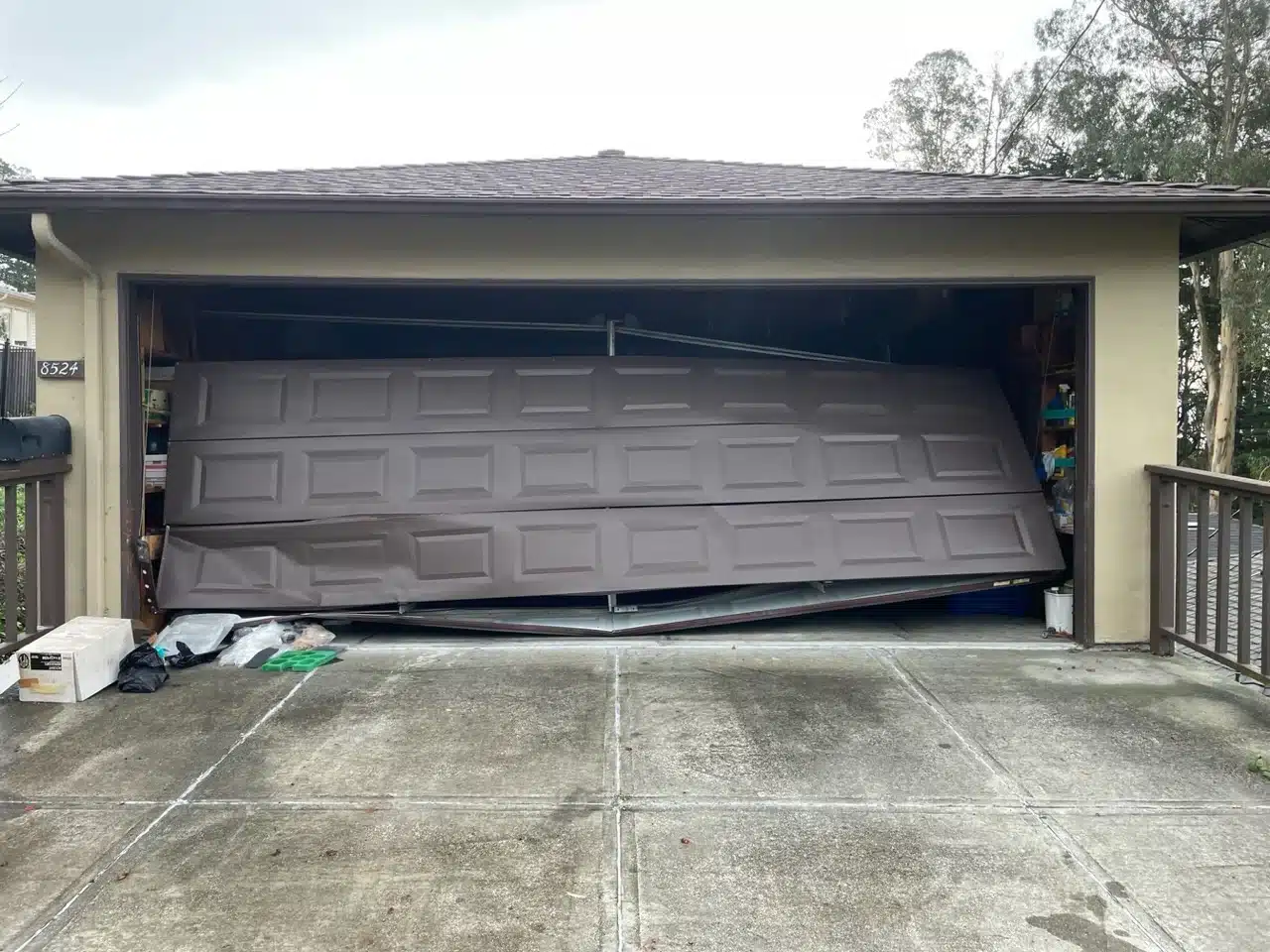

Once a spring breaks, that support disappears, and the door’s full weight is no longer countered, which is why it can fall quickly and without warning. In that moment, the door becomes both heavy and unstable, and anything beneath it is suddenly at risk, whether that is a person walking through or a car parked inside. Since the spring is the component designed to manage that force safely, a failed spring turns normal door movement into a hazard that should be treated as a serious safety concern.
How Broken Springs Disrupt Door Balance and Operation
A broken spring throws the entire door system out of balance, because the part meant to carry most of the load is no longer doing so. The weight shifts immediately to components that were never designed to hold it, which is why the door often becomes extremely difficult to lift by hand and may not lift at all. Even if it moves slightly, it will feel heavier than normal, since the counterweight effect is gone.
Alignment problems follow quickly in garage doors, especially on systems with two springs, because when one fails, the door can hang unevenly and start to track crookedly. As the rollers bind or jump in the tracks, additional damage can spread to cables, panels, and hardware, while the opener strains against a load it is not built to lift on its own. If the spring lets go while the door is in motion, the shift can be sudden as the door may stop mid-lift and drop or accelerate while closing, which can bend sections and knock the system out of true, turning a single failure into a broader door repair issue.
What Happens When a Spring Breaks and Why It Fails
When a garage door spring fails completely, it usually happens without warning, which is why the first thing most people notice is a sudden, explosive bang from inside the garage. That sound happens as the tightly wound coils snap apart, releasing the stored tension that has been lifting and balancing the door with every cycle. Once that energy is gone, the system immediately loses the counterforce it depends on, and the door is left without the support that normally makes it feel light and controllable.
Right after the break, the door often stops functioning the way it should, because the opener can’t lift a door whose full weight is no longer being offset by the spring. Even if the motor tries to pull the door upward, it is not designed to carry that load on its own, so the door may stall, struggle, or refuse to move at all. What feels sudden in the moment is usually the end of a long, slow weakening process, since springs eventually fatigue after thousands of openings and closings, which is why understanding what leads to failure helps explain what you are seeing when the break occurs.
For more on early clues people overlook, check out “Garage Door Spring Warning Signs Homeowners Usually Miss.”
Warning Signs That Point to Garage Door Spring Repair Needs
A spring rarely goes from healthy to broken in an instant, so there are often changes in the door’s behavior that show up beforehand if you know what they mean. As a spring loses strength, the door starts to feel heavier than usual and may no longer stay steady when it is partially open, because the balance that normally holds it in place is fading. That uneven feel is one of the earliest signals that the lifting system is no longer working at full capacity.
You may also notice the opener sounding strained or operating less smoothly than it used to, since it begins compensating for a spring that is no longer carrying its share of the load. The door might travel unevenly, move at a noticeably different pace, or show visible separation in the coils of a torsion spring, which are all indicators that the spring’s structure is weakening. When several of these signs appear together, they usually point to a spring that is approaching failure, especially when the door’s movement no longer feels steady or predictable.
Some common warning signs include:
- A loud popping or sharp bang coming from the garage
- A door that looks crooked or hangs unevenly on the tracks
- A door that feels unusually heavy when lifted
- Visible gaps or separation in torsion spring coils
- Door movement that suddenly becomes jerky, faster, or slower than normal
- An opener that struggles, stalls, or fails to lift the door
Common Causes That Lead to Sudden Spring Failure
The most common reason a garage door spring breaks is simple cycle fatigue, because every opening and closing counts as one use that slowly wears the metal down. Springs are built to handle a set number of cycles, and once that limit is reached, the steel begins to lose resilience, which makes a break far more likely under normal tension. Doors that are used frequently reach that fatigue point faster, since the spring is asked to compress and release its force more times in a shorter span.
Environmental stress can speed that process up, particularly when moisture and temperature swings are involved, because rust and corrosion weaken the coils over time. As the metal surface degrades, friction increases, and small, weak points form along the spring, increasing the risk of an abrupt snap during operation and leaving openers struggling against a load they were never meant to carry alone. Premature failure can also happen when the spring is not correctly matched to the door’s weight or configuration, since an overworked spring is forced to carry more tension than it was designed to handle, eventually giving way sooner than expected.
Common causes of spring failure include:
- Long-term wear from repeated opening and closing cycles
- Rust or corrosion that weakens the spring metal
- Temperature changes that add stress to aging coils
- Springs that are not properly matched to the door weight or the door setup
- Misalignment in the lifting system that increases uneven strain
Broken Spring Replacement and the Correct System Match
When a garage door spring breaks, it can’t be repaired in a way that restores safe, reliable performance, which is why a full broken spring replacement is the only real solution. Replacing a spring is not just a matter of swapping parts, since the new spring has to be correctly matched to the door’s specific setup based on factors like weight, height, and track configuration. If the spring does not fit the system it is supporting, the door will lose its balance and strain other components, which can lead to uneven movement and another failure sooner than expected.
Because garage doors are not all built the same, the replacement has to align with the type of spring system already in place and the demands of the door it lifts. Torsion and extension springs work differently and are sized for different loads, so choosing the correct match matters for both performance and safety. When the spring is properly paired with the door, the system regains the controlled tension it needs, which allows the door to open and close smoothly again.
If you want to understand when a full swap becomes the only option, read “Garage Door Spring Replacement When Other Fixes Don’t Help.”
Emergency Garage Door Spring Replacement and Overhead Door Spring Replacement Process
A broken spring often becomes an emergency garage door spring replacement situation, because the door may be stuck shut or left unstable in a way that limits access and raises safety concerns. The overhead door spring replacement process typically involves relieving any remaining tension, removing the damaged spring, and fitting a new spring that matches the door’s specifications. Since the spring works in coordination with other lifting components, the surrounding hardware is also considered during the replacement, because worn or strained parts can affect how well the new spring performs afterward.
The steps involved can vary depending on the spring type, the weight of the door, and the condition of the supporting system, especially when the break happens after a period of uneven operation and calls for emergency garage door service. Restoring the correct spring balance brings the door back to steady travel, allowing the opener to guide the motion rather than fight the door’s raw weight. Once the correct spring is installed and the system is rebalanced, the door can return to stable, even movement without the jerks or stalls that usually follow a spring failure.
|
Factor |
Impact on Replacement Process |
|
Spring Type |
The door may use torsion or extension springs, and each system requires a different fitting and rebalancing method. |
|
Door Size and Weight |
Larger or heavier doors need springs calibrated for a higher load, which affects how the system is balanced after replacement. |
|
Condition of Related Hardware |
Frayed cables, worn drums, or stressed brackets can add steps to ensure the door moves evenly again. |
|
Spring Accessibility |
Some layouts allow direct access, while tighter installs require extra disassembly to reach the spring area safely. |
Garage Door Torsion Spring Replacement vs. Garage Door Extension Spring Replacement Options
Before any garage door spring replacement happens, it helps to understand which type of spring your system uses, since the process and behavior of the door depend on that design. Most doors rely on either torsion springs or extension springs, and while both counterbalance the door’s weight, they do it in distinct ways that affect how replacement is approached. A garage door torsion spring replacement involves springs mounted on a metal shaft above the opening, where they lift by twisting and unwinding to deliver smoother, more controlled movement, which is why torsion systems are often viewed as a steadier and longer-lasting setup. By contrast, a garage door extension spring replacement centers on springs that run alongside the tracks and stretch as the door travels, creating a simpler layout but one that can become hazardous if a spring snaps without proper containment. In practice, torsion springs sit overhead while extension springs sit along the sides, and torsion systems typically hold up longer under repeated use, which together explains why the spring type matters when matching the door and restoring balanced operation.
Knowing what can happen when a garage door spring breaks is essential for protecting both your safety and your door’s performance, since a sudden failure can throw the system out of balance and create real hazards in a moment. When you understand the early warning signs and the common reasons springs wear out, you’re better prepared to address problems before they escalate into a breakdown that leaves the door unstable or unusable. Staying aware of how your door feels and moves helps you notice changes sooner, and understanding the spring options in your system makes it easier to choose the right solution if a break happens. With that knowledge in place, you can respond confidently and keep your garage door operating the way it should, even when an unexpected spring failure interrupts normal use.
When you need help restoring safe, reliable operation after a spring failure, R&S Erection of Richmond, Inc. is here to make the process straightforward and stress-free. Our team understands how quickly a broken spring can disrupt your day, so we focus on getting your door back to smooth, balanced movement with the correct system match and careful attention to the full setup. Contact us today or give us a call to schedule your service and get your garage door working safely again.
