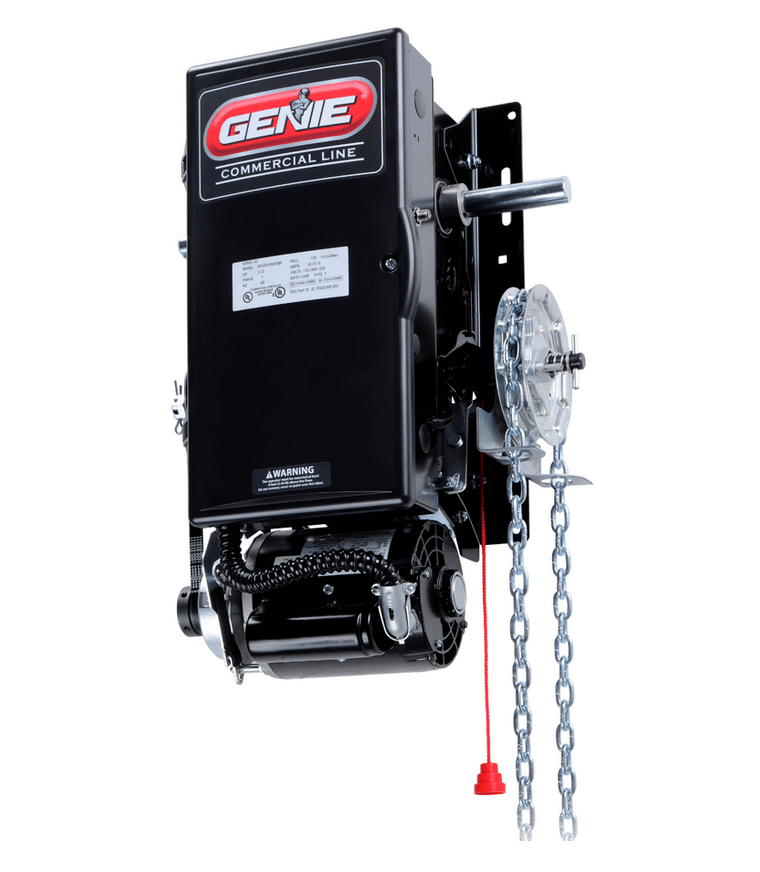

The GCL-H is designed for high or full-lift sectional and rolling doors that have a 30-cycle/hour or fewer duty requirements. Advanced features and robust mechanical design combine to provide a standard-duty operator that sets a new standard for productivity.
Advantages
- MultiVolt® – Order phase-specific operator for the job and have the ability to select the right voltage on the job site.
- Single Phase: 115/208/230V AC
- Three Phase: 208/230/460V AC
- 575V AC voltage models available separately
- Modular design with optional expansion boards for an advanced timer to close and auxiliary output functionality.
- LCD display with intuitive setup menu. Provides current status and trouble-shooting assistance.
- Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.
- EZ Limit® provides for push-to-set limits that stay synchronized with door through a long-term loss of power.
- TensiBelt® primary drive reduction eliminates the need to adjust belt tension.
- Open/close/stop and setup keys included on the control board. Keeps all controls near the LCD display convenient for set up.
Standard Features
- UL 325 2010 approved.
- EZ Limit® electro-mechanical limits.
- MultiVolt® voltage simplification.
- Max run timer automatically adjusts to up and down run time.
- TensiBelt® primary reduction.
- Delay on reverse.
- 16-character LCD display.
- Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen.
- 3-button control station.
- 2-year/20,000 cycle warranty.
- Programmable mid-stop.
- Emergency hoist for manual operation; available in right or left hand.
Product Information
Shop Drawings
Other Resources
Product Information
GCL-H Support
Shop Drawings
GCL-H Support
Other Resources
GCL-H Support
Other Resources:
Genie Technical Support is also available:
Monday – Friday: 8 AM – 7 PM EST
Contact us for Commercial Product Support at:
Phone 1-800-843-4084
